- 2 voltage configurations (120, 120/240V) available
- Industrial design for rough service applications
- Enclosure is Chemical and U.V. resistant
- Double insulated user interface for added safety
- Available in Automatic or Manual reset models
- Open neutral protection (only on applicable models)
- 30 Amp trip level for GFPE level protection (achieves NEC 555 Compliance)
- Dual indication lights displaying power and fault status
- Varying cable or wire lengths (specific to perm/port models in pages below)
- Solid wires (input) striped wires (output)
- Permanent: 2 mounting options
- Portable: cable length variations available
- 1Ø and split cCSAus certified to CSA-C22.2 No. 144

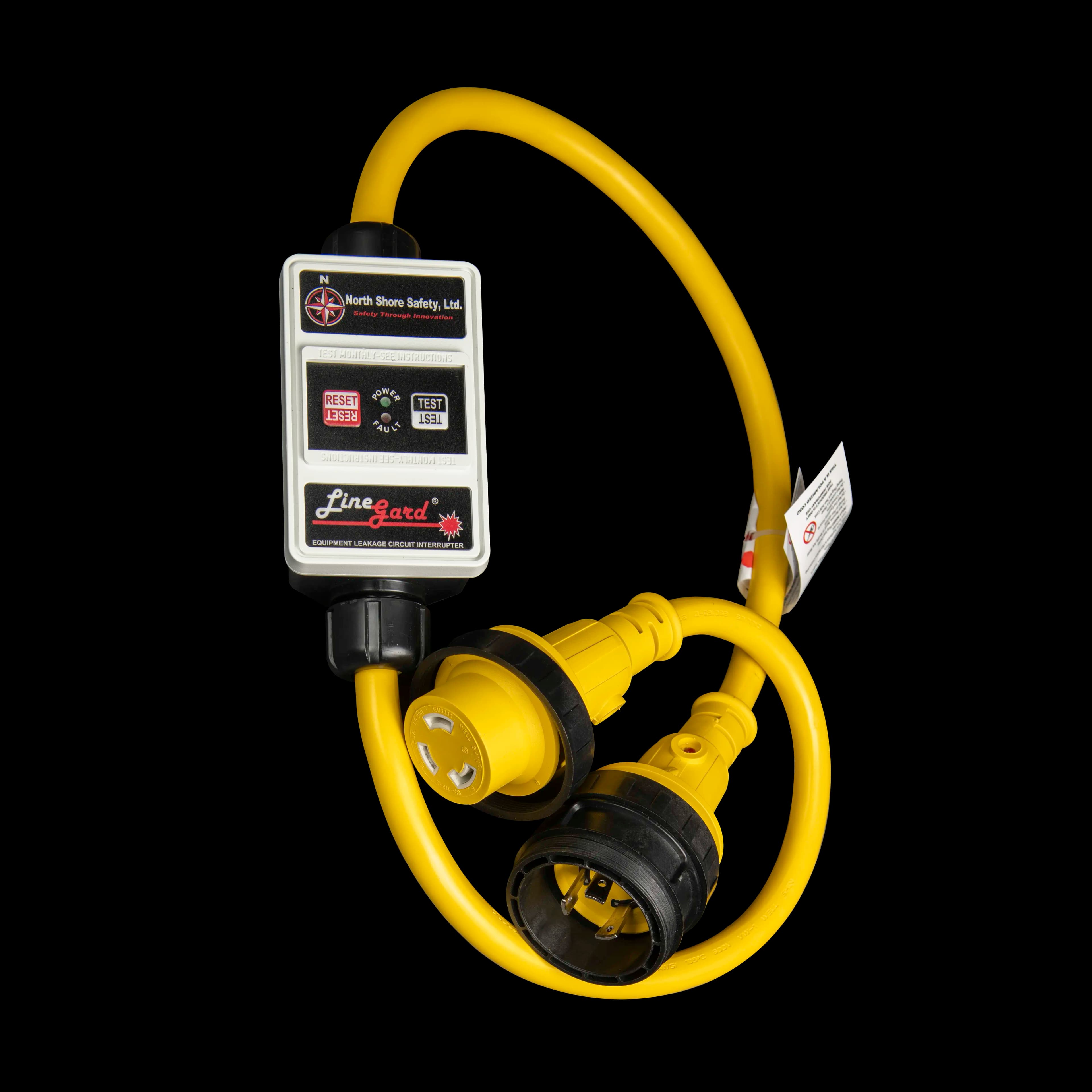

30 Amp Portable And Permanent Marine ELCI
- 2 voltage configurations (120, 120/240V) available
- Industrial design for rough service applications
- Enclosure is Chemical and U.V. resistant
- Double insulated user interface for added safety
- Available in Automatic or Manual reset models
- Open neutral protection (only on applicable models)

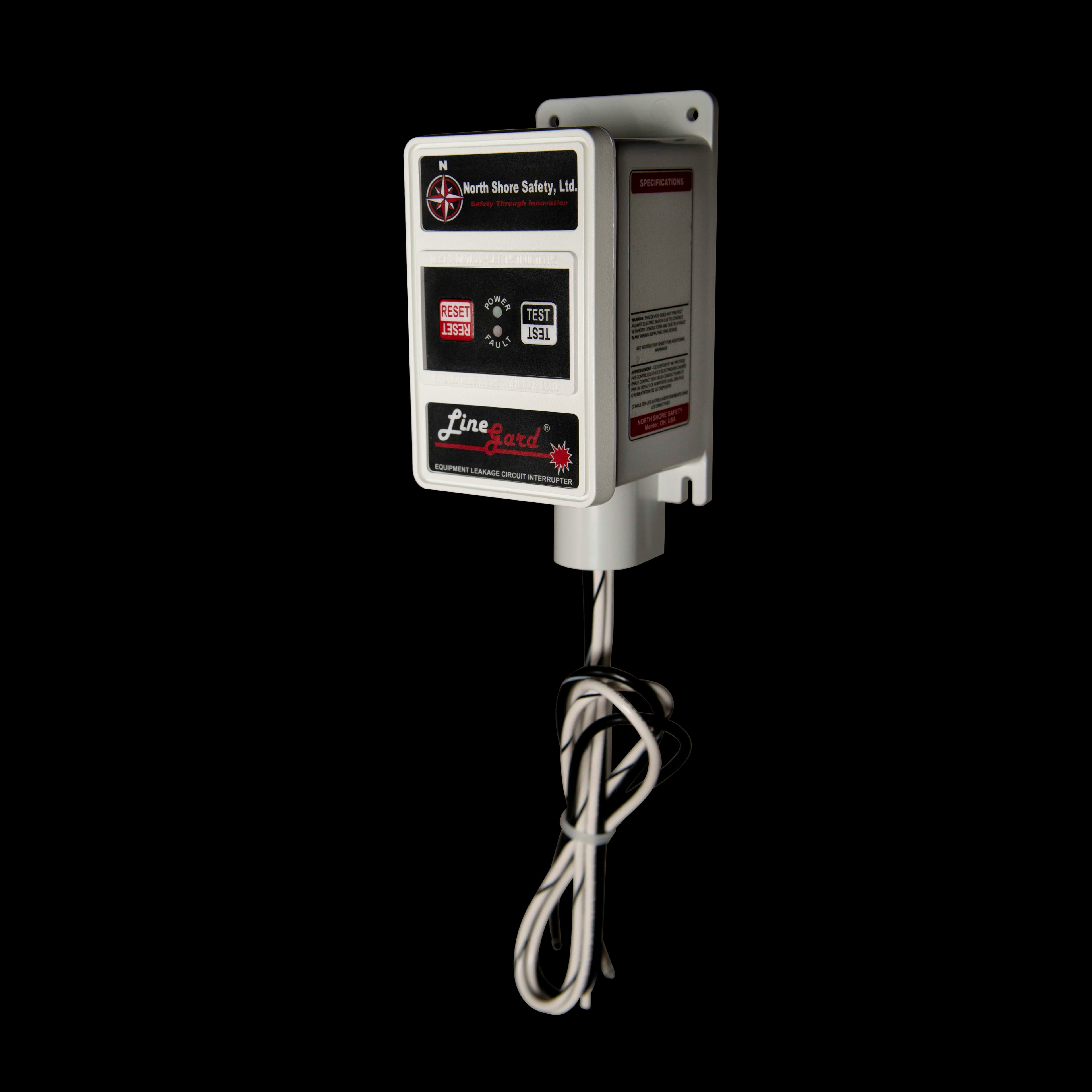

- The LineGardTM 30 Amp Marine Permanent Series single and split phase ELCI is ideal for existing marine shore power circuit installations without existing Ground Fault Protection Equipment (GFPE) level protection. This ELCI has a unique design that offers the flexibility of splicing-in the protection of an ELCI anywhere within the length of a circuit run, including directly mounting to the pedestal. This convenience allows the installer to place this ELCI at a accessible location for the end user.
- Unlike breaker style ELCIs which have limitations of circuit length from the service panel: the Permanent Series ELCI is installed at the point of use and thus has no restrictions to circuit length by definition.
- The LineGardTM 30 Amp Marine Permanent Series ELCI can be mounted on a shore power pedestal to bring an existing circuit up to the NEC 555.35 standards.

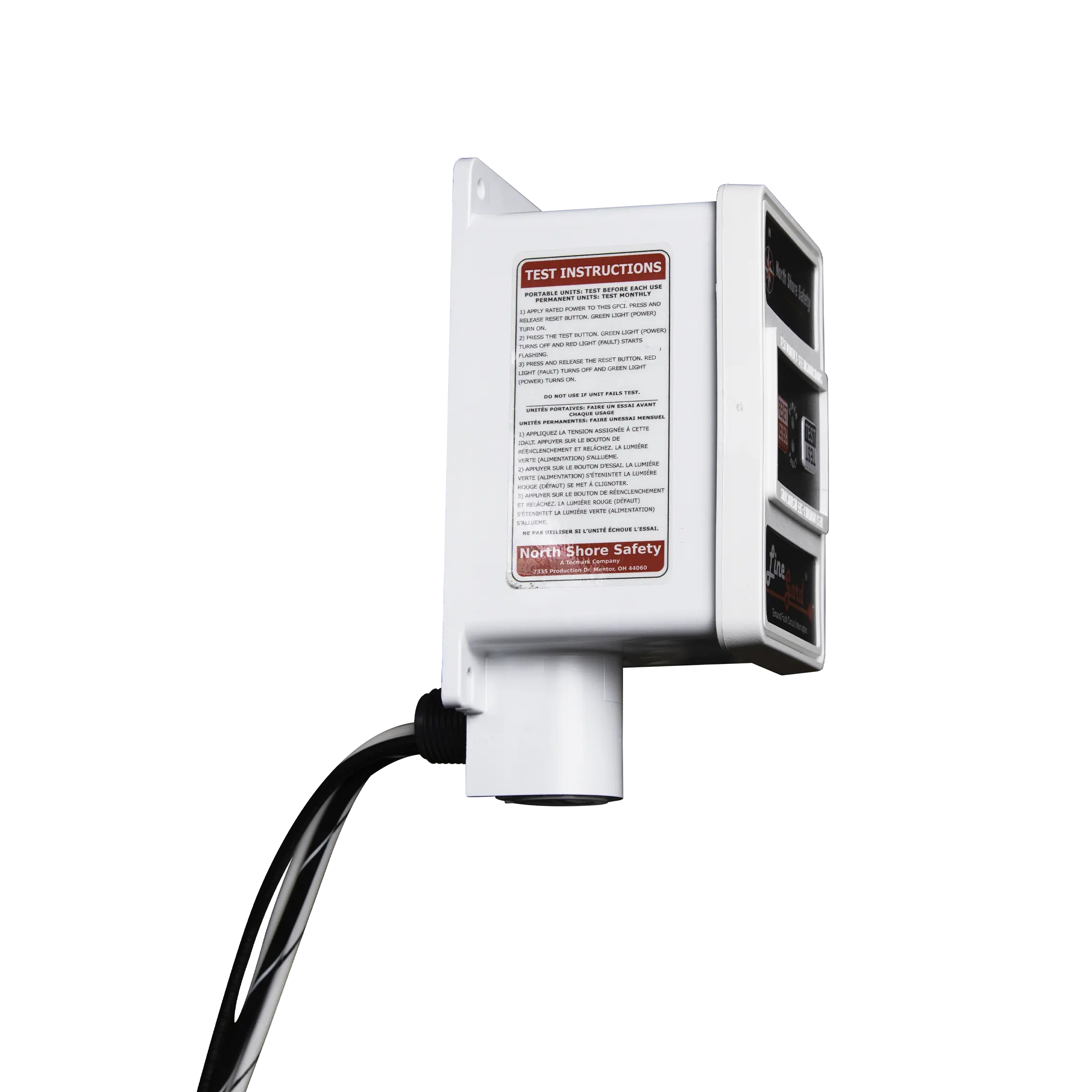

- All units have 18” splicing lead wires, a 3⁄4” NPT fitting that can connect to 3⁄4” PVC, EMT, Burial and Flexible conduits. In addition, the unit can be installed as a panel mount.
- All units are available in an Automatic reset type. Note: ground wire is connected externally to ELCI device and does not enter the ELCI housing. All units are CSA C22.2 No.144 listed.
- North Shore Safety offers custom assemblies in addition to our standard models. All custom assemblies can be, integrated with various wiring devices, cord lengths, or wire terminations for convenience of use and installation.
- All LineGardTM 30 Amp Permanent Series ELCIs are proudly assembled in the U.S.A in ISO certified facilities and are, cCSAus certified.
- Type: ELCI
- Voltage: 120VAC, 120/240VAC.
- Operating Voltage Range: 85% TO 110% of rated voltage
- Current: Up to 30 Amps or receptacle device rating
- Frequency: 60 Hz, (50 Hz available)
- Trip Level: 30 mA
- Phase: Single & Split
- Response Time: 25 mS max @ 500 Ohm Fault
- Operating Temperature: -35°C to 66°C
- Reset Type: Automatic
- Open Neutral Protection: Opens upon loss of neutral (only on applicable models)
- Enclosure: NEMA 4X wet location rated
- Switch Interface: Double insulated
- Latching Mechanism: Electro-magnetic
- Agency Approval:cCSAus
