50 Amp Portable And Permanent Marine ELCI

  • Rated for up to 50A 120/240V
  • Industrial design for rough service applications
  • Enclosure is Chemical and U.V. resistant
  • Double insulated user interface for added safety
  • Automatic reset after power interuption
  • Open neutral protection (only on applicable models)
  • Rated for up to 50A 120/240V
  • Industrial design for rough service applications
  • Enclosure is Chemical and U.V. resistant
  • Double insulated user interface for added safety
  • Automatic reset after power interuption
  • Open neutral protection (only on applicable models)
  • 30 mA trip level for GFPE level protection (achieves NEC 555 Compliance)
  • Dual indication lights displaying power and fault status
  • Varying wire (permanent) and cable lengths (portable) available (upon factory request)
  • Split Ø cCSAus certified to CSA-C22.2 No.144
  • The LineGard™ 50 Amp Marine Permanent & Portable Series split phase ELCI is ideal for existing marine shore power circuit installation without existing Ground Fault Protection Equipment (GFPE) level protection, both to be retrofit mounted with the permanent option or for on the boat use with the portable option. This ELCI series comes standard with a 30 mA trip level to meet NEC standard 555.35, which provides guidelines for safety regarding the electricity transfer between shore power & boats with Ground Fault Protection Equipment (GFPE)/ELCIs.
  • The Permanent Series ELCI is installed at the point of use and thus has no restrictions to circuit length by definition, offering more flexibility than an ELCI style breaker. The Portable Series ELCI comes standard with a marine grade molded twist lock plug and connector, which offers you compliant, leakage free boat charging at any pedestal. Either option will make any shore power system NEC 555.35 compliant.

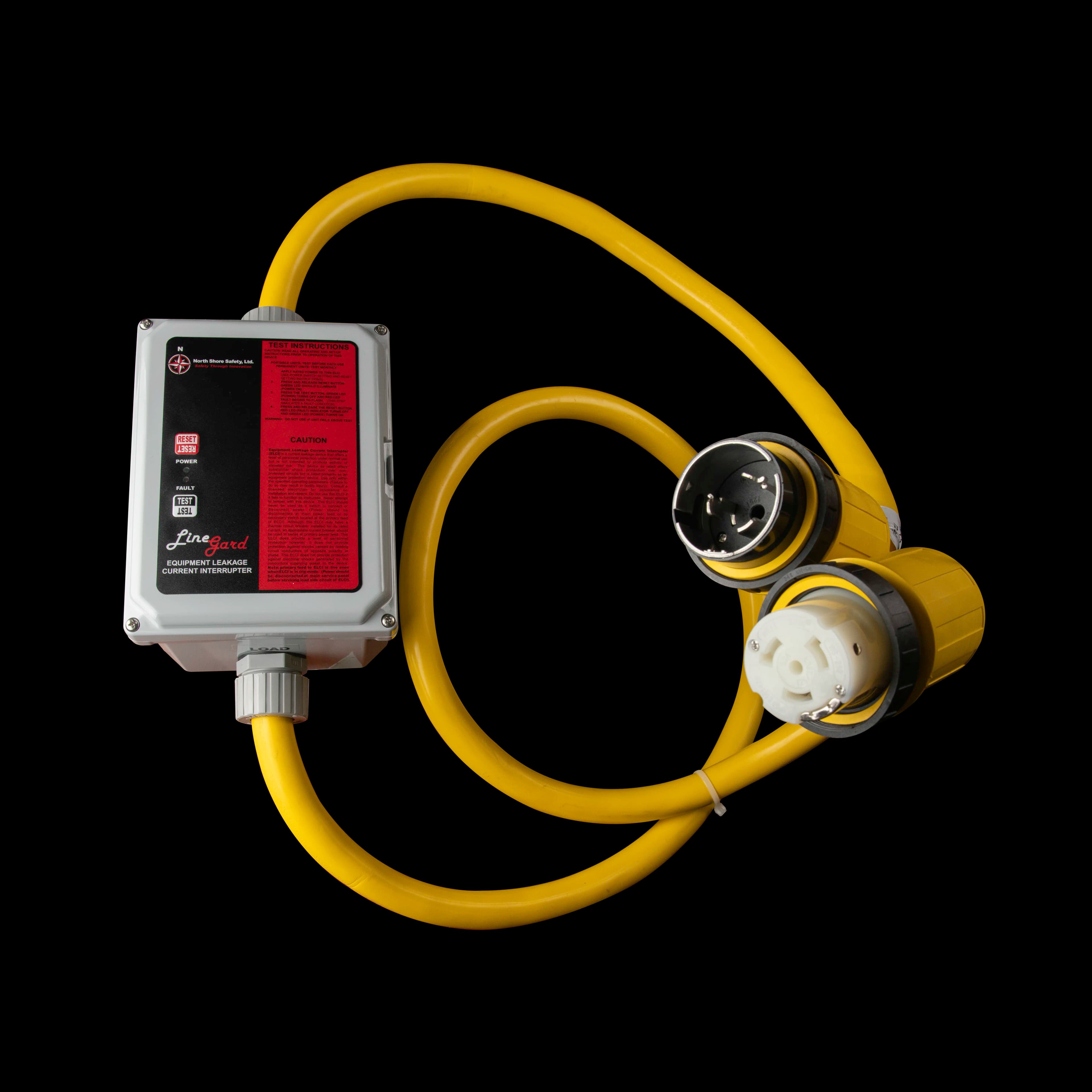

  • The Permanent Series have 60” splicing lead wires and 1” NPT conduit fittings for integration to flexible, EMT, PVC, or burial conduit. The Portable Series have a 6’ primary and a 6’ secondary marine grade twist lock plug & connector. Either option is open to end users desired configuration (consult factory). All units are CSA 22.2 No.144 listed.
  • North Shore Safety offers custom assemblies in addition to our standard models. All LineGard™ 50 Amp Marine Portable & Permanent Series ELCIs are proudly assembled in the U.S.A in ISO certified facilities and are cCSAus certified.
  • Voltage:120/240VAC.
  • Operating Voltage Range: Up to 50% of rated voltage
  • Current: Up to 50 Amps or receptacle device rating
  • Frequency: 60 Hz
  • Phase: Single & Split
  • Response Time: 25 mS max @ 500 Ohm Fault
  • Operating Temperature: -35°C to 66°C
  • Reset Type: Automatic
  • Open Neutral Protection: Opens upon loss of neutral
  • Enclosure: NEMA 4X wet location rated (Portable Only)
  • Switch Interface: Double insulated
  • Latching Mechanism: Electro-magnetic
  • Agency Approval: cCSAus
